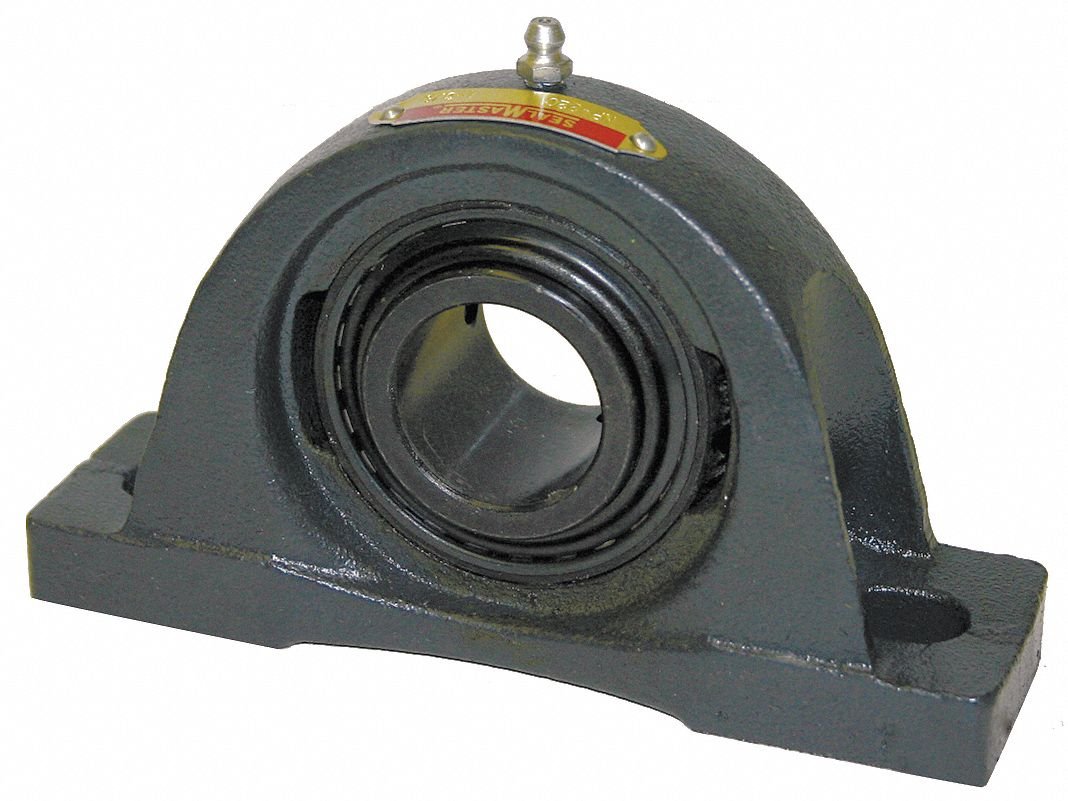

1" Pillow Block Bearing - Ball Bearing with 15/16" Bore - Heavy Duty Cast Iron Housing for Industrial Machinery, Conveyors & Agricultural Equipment

'Pillow Block Bearing, Number of Bolts 2, NP Series, Bore Dia. 15/16 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 4-1/8 In., Mounting Surface to Shaft Center 1-7/16 In., Overall Height 2-13/16 In., Overall Width 1-1/2 In., Overall Length 5-1/2 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 2801 lb., Static Load Capacity 1,651 lb., Temp. Range -20 Degrees to 220 Degrees F'

Price For Each Bearing Insert Material 52100 Chrome Steel Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent Temp. Range -20 Degrees to 220 Degrees F Locking Type Set Screw Finish black oxide Overall Height 2-13/16" Dimension F 7/16" Housing Material Cast iron Bolt Size 3/8" Dimension B 5-1/2" Bearing Insert Type Ball Dimension E 1-9/32"

Item Pillow Block Bearing Dynamic Load Capacity 2801 lb. Dimension D 1-1/2" Static Load Capacity 1651 lb. Dimension C 3-7/8" to 4-3/8" Mounting Surface to Shaft Center 1-7/16" Dimension A 1-7/16" Bore Dia. 15/16" Number of Bolts 2 Dimension L 1-3/8" Series NP Dimension J 1-3/8" Overall Width 1-1/2" Dimension H 2-13/16" Overall Length 5-1/2" Dimension G 1/2"

Country of Origin (subject to change) Multiple
