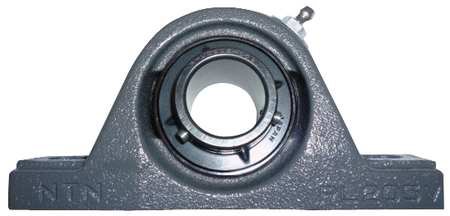

1" Pillow Block Bearing with Ball Bearing - 15/16" Bore Diameter - Heavy Duty UCP Housing for Industrial Machinery, Conveyors & Agricultural Equipment

'Pillow Block Bearing, Number of Bolts 2, Standard Duty Series, Bore Dia. 15/16 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 4-1/8 In., Mounting Surface to Shaft Center 1-7/16 In., Overall Height 2-25/32 In., Overall Width 1-1/2 In., Overall Length 5-1/2 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 3150 lb., Static Load Capacity 1,770 lb., Temp. Range -20 Degrees to 250 Degrees F'

Price For Each Number of Bolts 2 Bearing Insert Type Ball Series Standard Duty Temp. Range -20 Degrees to 250 Degrees F Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent Item Pillow Block Bearing Number of Bolts 2 Bore Dia. 15/16" Mounting Surface to Shaft Center 1-7/16" Locking Type Set Screw Housing Material Cast iron Static Load Capacity 1770 lb.

Finish Painted Overall Width 1-1/2" Dimension N 7/16" Overall Length 5-1/2" Dimension L 5-1/2" Overall Height 2-25/32" Dimension J 4-1/8" Dimension H 1-7/16" Dimension B 1-11/32" Bolt Size 3/8" Dimension S 9/16" Dimension H2 2-25/32" Bearing Insert Material 52100 Chrome Steel Dimension D 15/16" Dimension H1 19/32" Dynamic Load Capacity 3150 lb.

Dimension A 1-1/2" Country of Origin (subject to change) Japan
