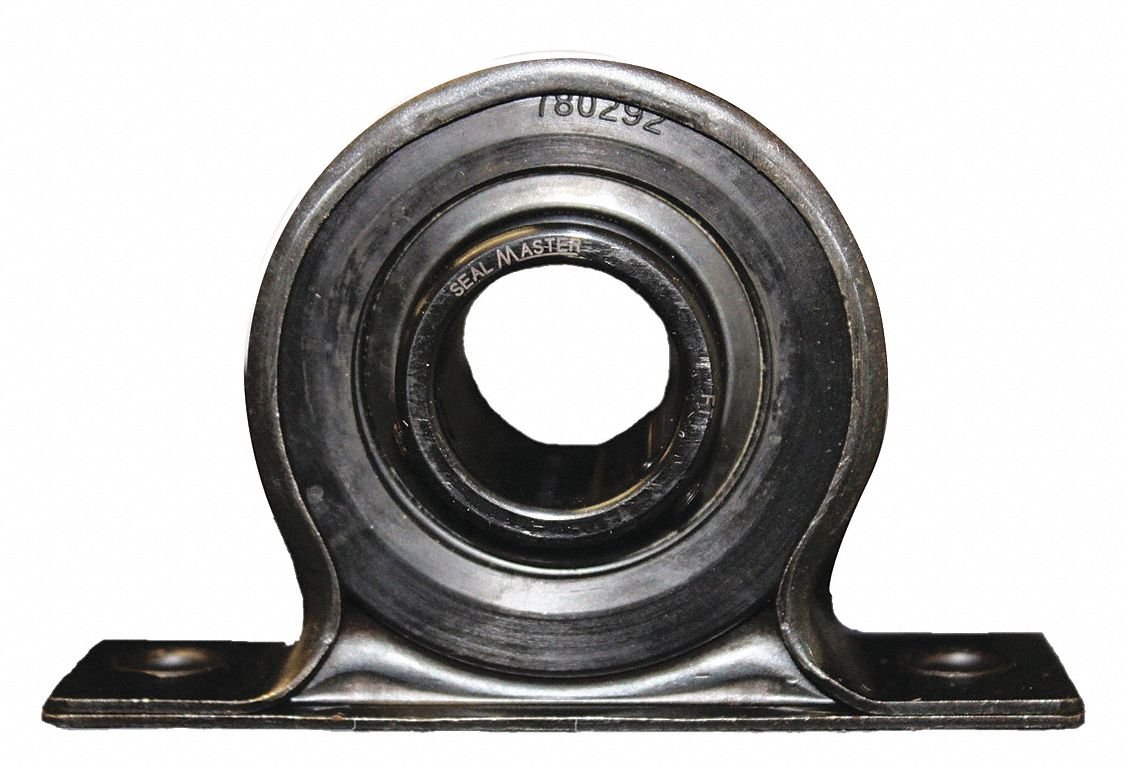

3/4" Bore Pillow Block Ball Bearing - Heavy Duty Support for Conveyors, Fans & Industrial Machinery

' Pillow Block Bearing, Number of Bolts 2, SRP Series, Bore Dia. 3/4 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Pressed Steel Housing Material, Set Screw Locking Type, Mounting Hole Center 3-5/8 In., Mounting Surface to Shaft Center 1-1/2 In., Overall Height 2-13/16 In., Overall Width 1-7/16 In., Overall Length 4-3/4 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 200 lb., Static Load Capacity 120 lb., Temp. Range -20 Degrees to 220 Degrees F '

Price For Each Bearing Insert Type Ball Finish Black Oxide Number of Bolts 2 Bearing Insert Material 52100 Chrome Steel Locking Type Set Screw Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent Item Pillow Block Bearing Temp. Range -20 Degrees to 220 Degrees F Dimension A 1-1/2" Bore Dia. 3/4" Series SRP Overall Width 1-7/16"

Dimension J 1-9/32" Overall Length 4-3/4" Dimension H 2-13/16" Overall Height 2-13/16" Dimension G 11/64" Housing Material Pressed Steel Dimension B 4-3/4" Bolt Size 3/8" Dimension M 1-1/8" Dimension E 2-1/64" Dynamic Load Capacity 200 lb. Dimension D 1-5/16" Static Load Capacity 120 lb. Dimension C 3-5/8" Mounting Surface to Shaft Center 1-1/2"

Country of Origin (subject to change) Multiple
