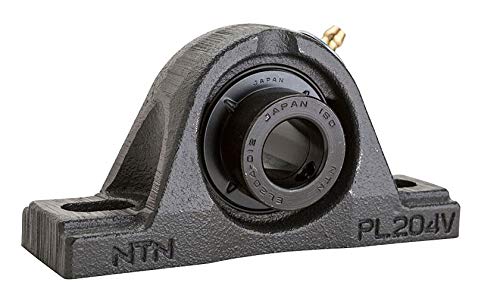

3/4" Bore Pillow Block Ball Bearing - Heavy Duty Industrial Use for Conveyors, Fans & Agricultural Machinery

Mounted Ball Bearings Temp. range: -20 to 250FFeature cast-iron housings. Elastomeric seal with flinger preserves lubricant and keeps contaminants out. Ultra-Class units have solid base construction for optimum load and shock stability and black oxide coating for superior environmental protection.Specification: Item: Pillow Block BearingMounted Bearing Item: Pillow Block BearingBearing Insert Type: BallBore Dia.: 3/4"Bolt Hole Center-to-Center: 3-25/32"Mounting Surface to Shaft Center: 1-1/4"Bearing Housing Material Type: Cast IronShaft Locking Type: Eccentric Locking CollarBearing Insert Material: 52100 Chrome SteelSeries: Standard DutyNumber of Bolts: 2Bolt Size: 3/8"Overall Height: 2-17/32"Overall Width: 1-1/2"Overall Length: 5"Bearing Lubrication: Shell Alvania #3 or NLGI #3 EquivalentDynamic Load Capacity: 2890 lb.Static Load Capacity: 1500 lb.Temp. Range: -20 Degrees to 250 Degrees FFinish: Painted

Item Pillow Block Bearing

Mounted Bearing Item Pillow Block Bearing

Bearing Insert Type Ball

Bore Dia. 3/4"

Bolt Hole Center-to-Center 3-25/32"
