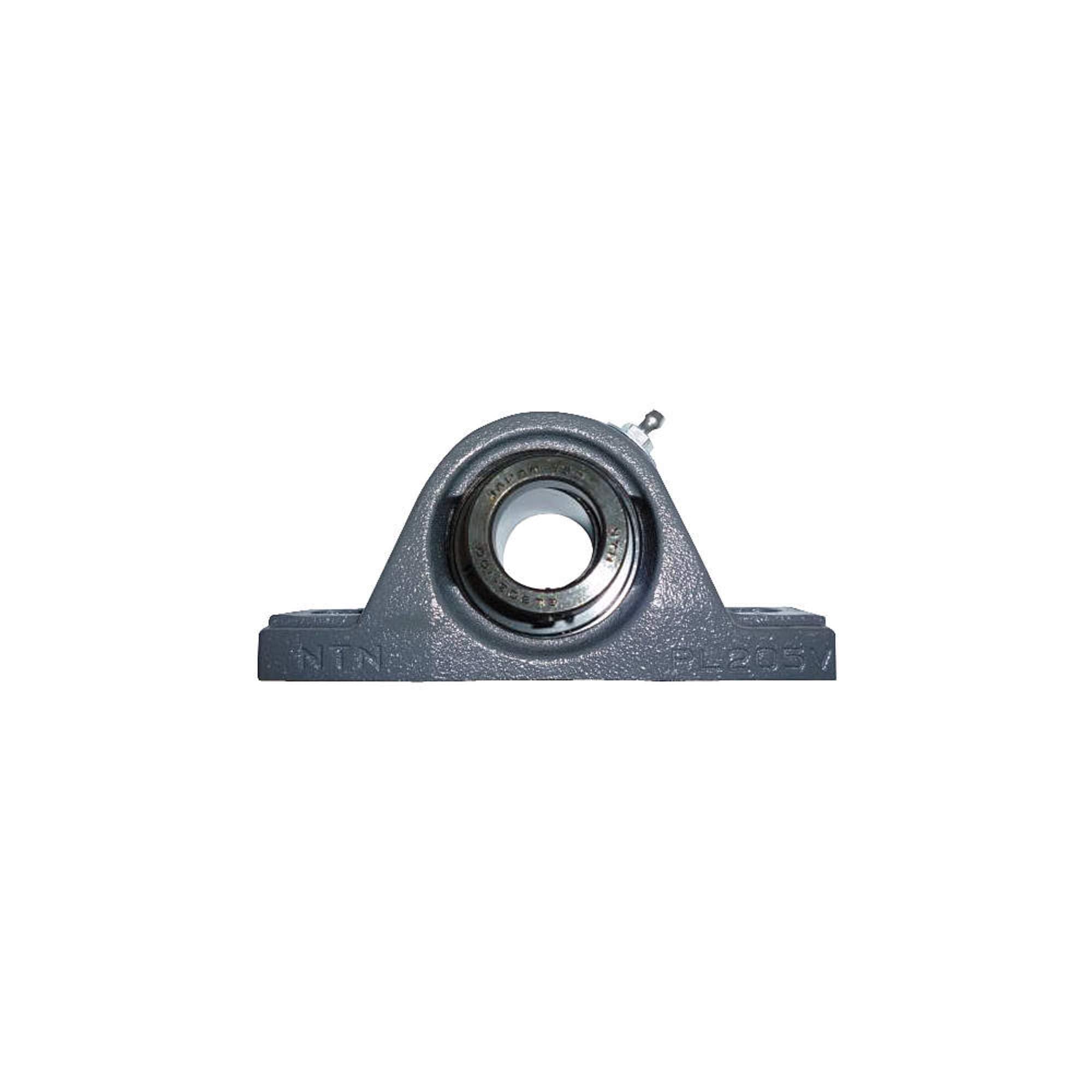

3/4" Bore Pillow Block Ball Bearing - Heavy Duty Support for Conveyors, Fans & Industrial Machinery

'Pillow Block Bearing, Number of Bolts 2, Standard Duty Series, Bore Dia. 3/4 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Eccentric Locking Collar Locking Type, Mounting Hole Center 3-25/32 In., Mounting Surface to Shaft Center 1-5/16 In., Overall Height 2-9/16 In., Overall Width 1-1/2 In., Overall Length 5 In., Bolt Hole Size 3/8 In., Ball Bearing Insert, Dynamic Load Capacity 2890 lb., Static Load Capacity 1, 500 lb.'

Price For Each Bearing Insert Type Ball Number of Bolts 2 Item Pillow Block Bearing Series Standard Duty Housing Material Cast Iron Bearing Lubrication Shell Alvania #3 or NLGI #3 Equivalent Number of Bolts 2 Bore Dia. 3/4" Mounting Surface to Shaft Center 1-5/16" Locking Type Eccentric Locking Collar Finish Painted Overall Width 1-1/2" Overall Length 5"

Dimension N 7/16" Overall Height 2-9/16" Dimension L 5" Dimension J 3-25/32" Dimension B 1-23/32" Dimension H 1-5/16" Dimension S 43/64" Dimension D 3/4" Bolt Size 3/8" Dimension H2 2-9/16" Dimension H1 9/16" Bearing Insert Material 52100 Chrome Steel Dimension A 1-1/2" Temp. Range -20 Degrees to 250 Degrees F Dynamic Load Capacity 2890 lb.

Static Load Capacity 1500 lb. Country of Origin (subject to change) Japan
